TRUMPETER 09571 1:35 Russian 1S91 SURN KUB Radar

1S91 SURN vehicle included two radar station – a target acquisition and distribution radar 1S11 and a continuous wave illuminator 1S31, in addition to an IFF interrogator and an optical channel.

While 1S31 antenna was installed on the upper section of the superstructure and the 1S11 on the lower, they could turn around independently. To make the height of the vehicle lower the central cylinder was able to hide inside the prime mover.

   The acquisition range of the radar was reported as 50 km  for the Phantom II type target.

   Total weight of the 1S91 vehicle with a crew of 4 was 20.3 tonnes and 2P25 vehicle with 3 missiles and a crew of 3 was 19.5 t.

Item No         09571
Item Name         Russian 1S91 SURN KUB Radar
Bar Code         9580208095714
Scale         1:35
Item Type         Plastic Model Armor Kit
Model Brief         Length: 201.5mm   Width: 104.3mm
Total Parts         530+
Metal Parts         n/a

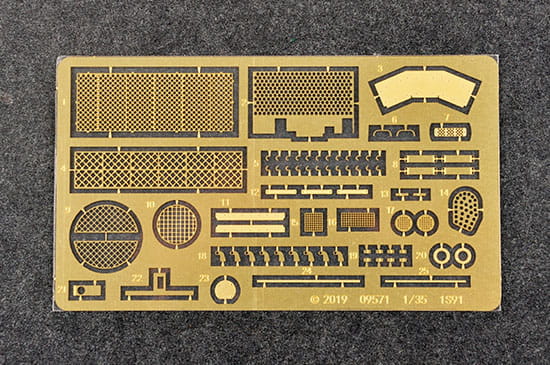

Photo Etched Parts         1 piece
Film Parts         n/a
Resin Parts         n/a

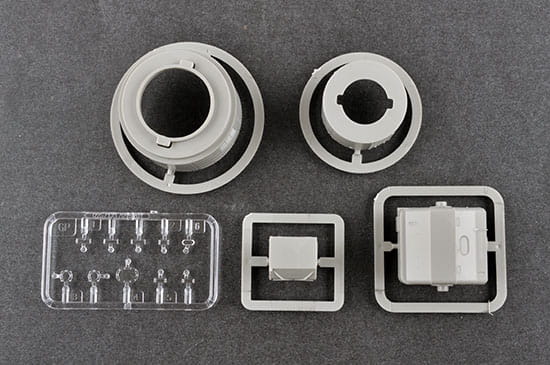

Total Sprues         13 sprues , lower hull and upper hull
Released Date         2019-10
More Features         The kit consists of over 530 parts
>the kit w/refined detail

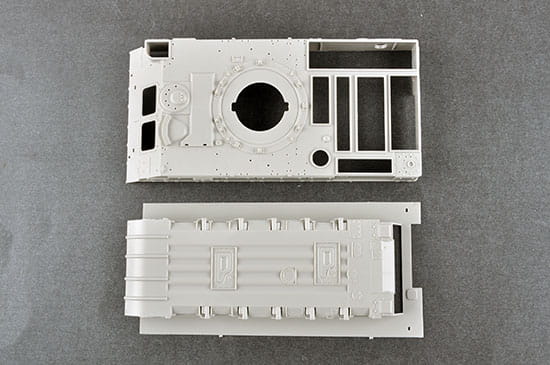

>multi-slide moulded  upper hull and lower hull
>Etched Photo parts included
